HM11

Machine Health Monitor

Machine Health Monitor

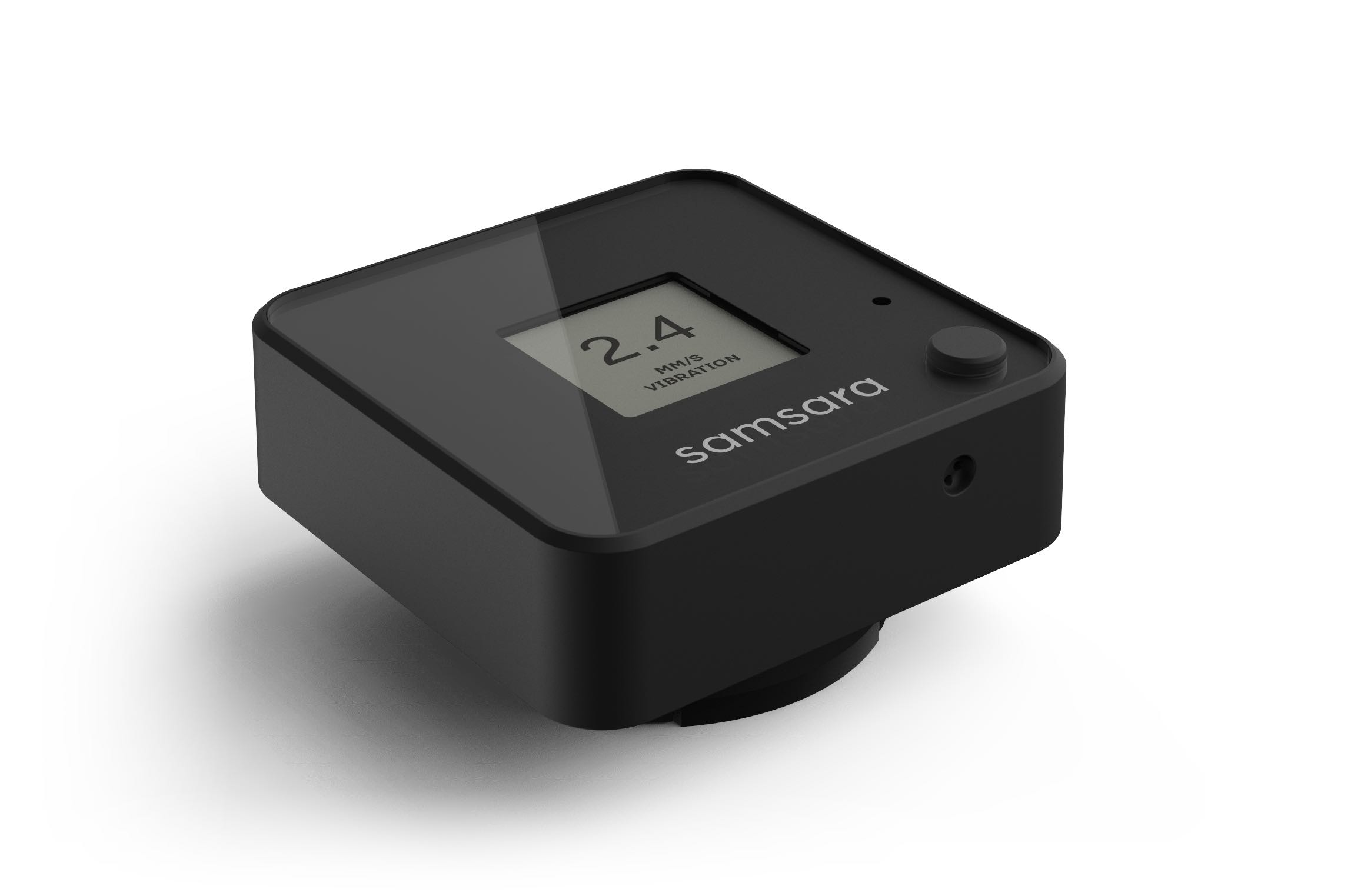

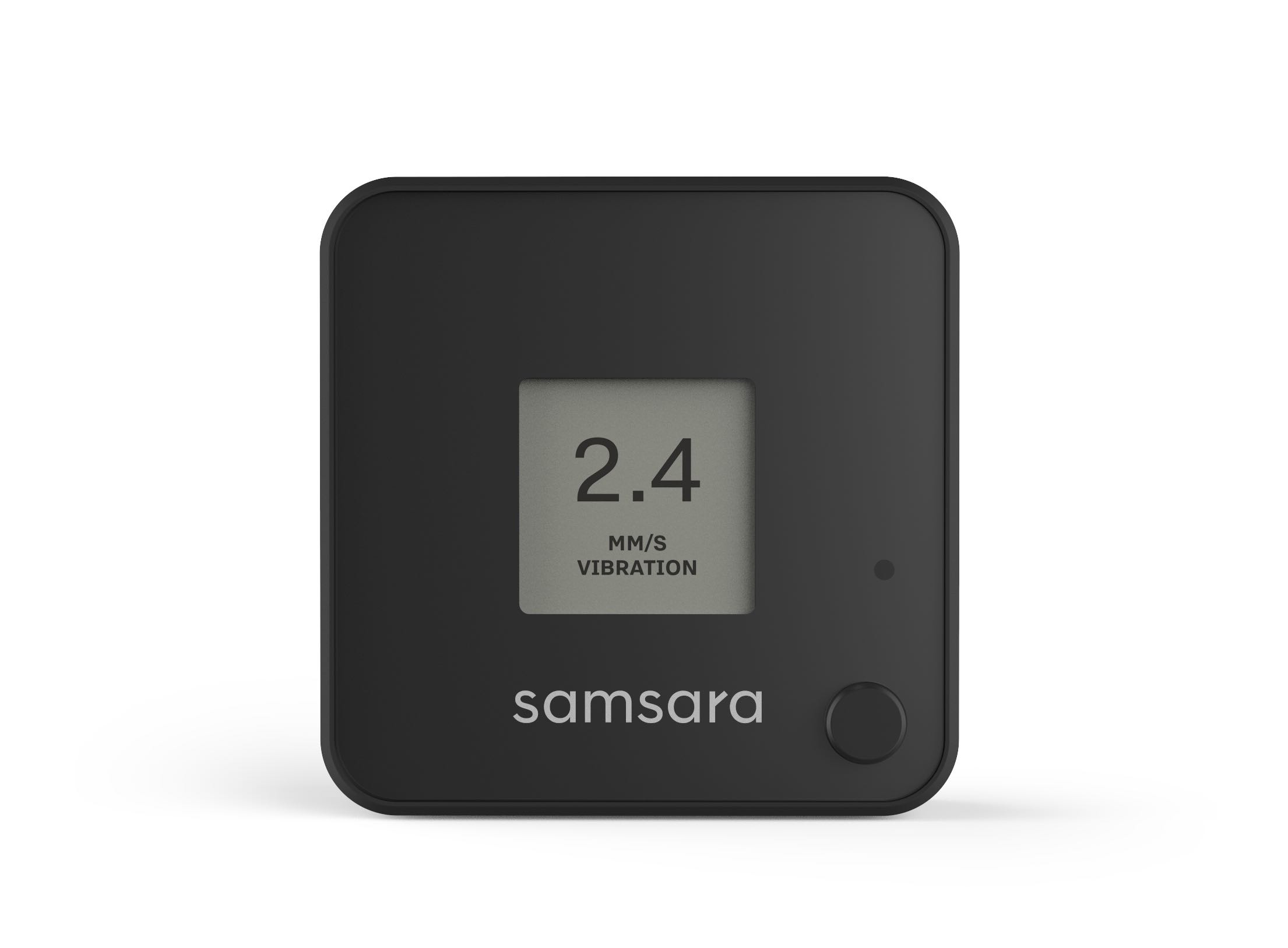

The HM11 is a wireless, real-time vibration and temperature sensor that deploys in minutes. Sensors mount directly onto machines and continuously stream data on the health of critical equipment, thereby reducing unplanned downtime and lowering maintenance costs.

List price: $599 plus $60 annual license (all-inclusive license includes maintenance, support, cloud software, and cellular data, if applicable. Volume purchase and multi-year license term discounts available.)

Automated monitoring of machine vibration and surface temperature

Samsara enables continuous tracking of key health parameters for critical equipment including motors, compressors, pumps, fans, etc., allowing you to replace manual walkarounds, catch issues early and improve machine performance.

Advanced tools to diagnose faults

With real-time email and/or text alerts, and advanced analysis tools like Fast Fourier Transform (FFT), Samsara helps you diagnose machine faults quickly so you can take timely corrective action and avoid expensive unplanned downtime.

Waterproof, ruggedized design for harsh industrial environments

HM-series monitors are designed for harsh operating environments. IP67-rating protects against splashes, spray, power washing, dust, and other environmental wear and tear. In addition, the HM11 has a durable design with exceptional resilience to impact.

Class-leading electronics with multi-year battery life

With the industry's most advanced wireless technology, HMs transmit sensor data in real time to Samsara gateways, enabling operators to see up-to-the-second sensor data over the web and to receive instant alerts. Even with always-on wireless networking and data-logging, the HM11 runs for more than three years off of a single AA battery.

Installs in minutes

HM-series monitors are wireless sensors that mount directly onto machines via magnets or epoxy, without needing to run any conduit or wiring. In addition, they require zero-configuration and connect wirelessly via Industrial Gateways, removing the need for any servers or IT setup.

Machine Health Monitor Download Datasheet

Included Sensors

Vibration
Triaxial accelerometer
Units: Vibration Velocity (Amplitude and RMS) - mm/s or ips
Frequency Range: 10Hz to 1 kHz
Measurement Range: +/- 16g
Sampling Rate: 1666 Hz with future support up to 6664 Hz
Accuracy: +/- 10%
Surface Temperature
Range: -40° to 85° C / -40° to 185° F
Accuracy: +/- 1° C

Wireless Connectivity

Real-time
Temperature sampled every 4 seconds
Vibration sampled every 5 minutes
Auto-discovery
Automatically detects and connects to any gateway associated with the same account
Range
100 ft / 30 m (line of sight). Actual range depends on RF interference, building materials, and physical obstacles
Radio Frequency
2.4 GHz, proprietary low-power sensor data protocol

Data Logging

Capacity
3 months on-device storage of vibration & temperature data
Data upload
Automatic (zero-touch) wireless data upload via Samsara gateways

Enclosure

Dimensions
63mm x 63mm x 30.5mm
Weight
91g
Operating Temperature
-40° to 85° C
Battery
3+ year battery life. User-replaceable AA battery
Materials
Polycarbonate
Mounting
Magnetic or industrial-grade epoxy (for non-ferrous surfaces)
Ingress protection
IP67 rated waterproof and dustproof per IEC standard 60529. Designed for splash, spray, and dust.

License

Requires HM license. License includes cellular data connectivity, cloud software, mobile apps, ongoing firmware updates, maintenance, and support. Available in 1, 3, and 5-year terms.
