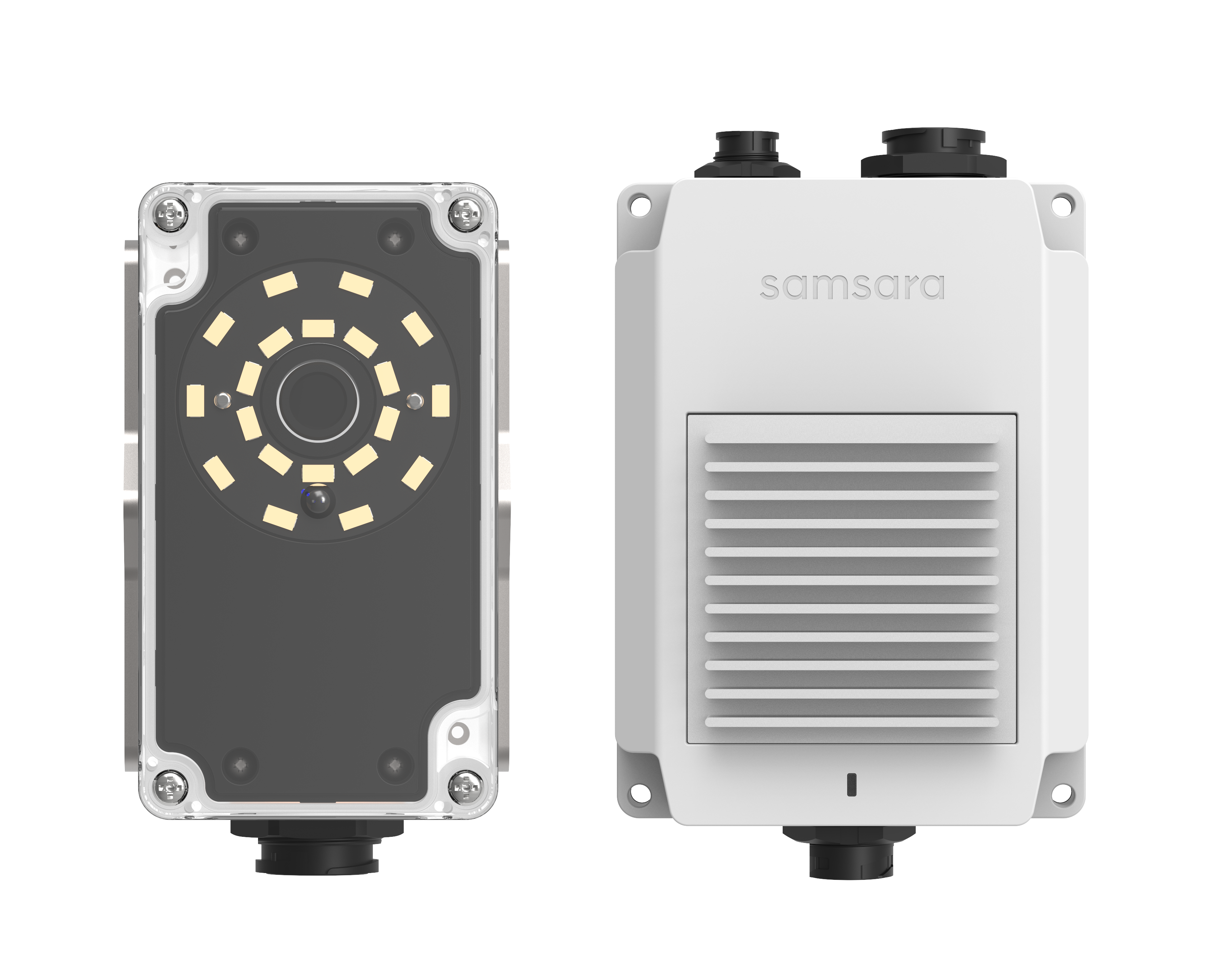

VS2

Cloud-Managed Machine Vision System

Cloud-Managed Machine Vision System

Samsara’s VS2-series machine vision system is an easy-to-deploy, easy-to-monitor quality management system that makes automated product inspection affordable across many production lines. It combines built-in cloud connectivity and automated traceability reporting with market-leading image processing capability and advanced vision detection to quickly reduce defects and simplify previously complex inspection challenges. Centrally managed and deployed verification programs reduce line setup and downtime, while out-of-the-box traceability reporting and defect alerting increase operational compliance, productivity, and quality.

List price: $2,999 plus $350 annual license (all-inclusive license includes maintenance, support, cloud software, and cellular data, if applicable. Volume purchase and multi-year license term discounts available.)*

Automatically Track Traceability and Quality Metrics with No Extra IT Hardware

Every product image - from every run - is easily accessible and searchable, as is quality performance across lines. Use built-in secure, online traceability reporting to quickly verify that troublesome line performance has been resolved, or instantly answer customer reporting requests with always-available production reports from any date range, including rate, quality statistics, and product images.

Integrate with Existing MES/Production Systems to Automate Quality Checks

Due to the central configuration of VS2 cameras, common programs can be easily deployed or modified across every line. New product SKUs can be quickly configured with a single click. VS2s also integrate with existing production systems, PLCs, and historians to allow automatic product changeovers and fast deployments with minimal change to operators’ existing processes.

Product Detail, Quality, Count, and Bottling Verification

Easily program Samsara’s vision system to inspect product details like color, size, count, texture, and object presence. Monitor filling processes to minimize scrap by confirming proper fill level, case packaging, and the presence of safety seals.

Code Matching, Label Printing, and Application Verification

Samsara’s vision system verifies and matches all 1D and 2D barcodes. Easily match product labels, monitor alignment, confirm centering, detect the presence of lot numbers/batch codes, and even evaluate best-by dates by SKU.

Cloud Dashboard Makes Inspection Easy to Install, Operate, and Monitor Across Every Line

The VS2 Series Vision System automatically uploads data captured from your production lines to the Samsara Cloud, providing zero-touch, centralized visibility into the performance of your entire operations. HMI operators can instantly access recent and historical captures from any web browser, identify current run status, monitor quality issues, and modify HMI Recipe Managers.

Download Datasheet

Enclosure

DIMENSIONS
Camera: 126 x 71 x 58mm (5.0 x 2.8 x 2.3 inches)
Controller: 105 x 152 x 48mm (4.1 x 6.0 x 1.9 inches)
Cables (included): 5m
WEIGHT
Camera: 400g
Controller: 510g
OPERATING TEMPERATURE
0° to 70°C
MATERIAL
Controller: UV-stabilized polycarbonate, Aluminium
Mounts: Powder-coated/corrosion-resistant stainless steel
INGRESS PROTECTION
IP67 (Camera and Controller and cable connections are all washdown-rated)
INDUSTRIAL CONNECTORS
Power/IO: Bayonet-locking, IP67
Camera: Bayonet-locking, IP67
Ethernet: RJ45 with included IP67 waterproof cap
INTEGRATED ILLUMINATION
White LEDs (5000K, integrated/internal)
EXTERNAL ILLUMINATION
Contact Samsara for options

Imaging Sensor

SENSOR TYPE
1/3” color CMOS with global shutter
RESOLUTION
1280 (H) x 960 (V) pixels
ACQUISITION RATE
20 frames per second
EXPOSURE TIME
1/10,000 to 1/10 second
INSTALLED DISTANCE
4” to 10” (100 mm to 254mm)
FIELD OF VIEW
116mm x 87mm @ 100 mm (4.6” x 3.4” @ 4”)
290mm x 218mm @ 254mm (11.4” x 8.6” @ 10”)

Power, Inputs, and Outputs

POWER
10V to 17V
TRIGGERING INPUT
NPN/PNP supported (no software configuration required)
REJECT OUTPUT
NPN/PNP supported (no software configuration required)
PLC/API
Modbus TCP
HTTP via REST API
See VS2 Integration Guide for details on API

Connectivity, Traceability, and Quality Management

ETHERNET
10/100 Mbps (10/100 Base-T)
WIFI
WiFi 802.11 b/g/n
TRACEABILITY DASHBOARD
Included
IMAGE HISTORY
2/sec maximum across all conditions (pass/fail); unlimited storage
QUALITY ANALYSIS
All runs, match rate and statistics, traceable to individual products
REMOTE ACCESS
Integrated, secure live monitoring and remote configuration with no additional hardware
DATA SECURITY
All dashboard connectivity secured out-of-the-box via SSL with 256-bit AES encryption (the encryption standard for sensitive data including military and financial applications)

Barcode Reading / Inspection

SUPPORTED TYPES
UPC-A
UPC-E
EAN-8
EAN-13
EAN-2
EAN-5 Add-On
Interleaved-Two-of-Five (ITF)
Code 32 Italian Pharmacode
Code 39
Code 93
Code 128
Code 25
Code 11
DotCode
MSI Plessey
GS1 Databar
QR Code
Micro QR Code
Data Matrix
PDF417
MicroPDF417
Codabar
Aztec Code
MaxiCode
GS1 Composite Codes
KIX
RM4SCC

License

Requires VS license. License includes cellular data connectivity, cloud software, mobile apps, ongoing firmware updates, maintenance, and support. Available in 1, 3, and 5-year terms.

*List pricing based on Samsara Enterprise license with 36-month pre-paid term. Other license options available, contact us for details
