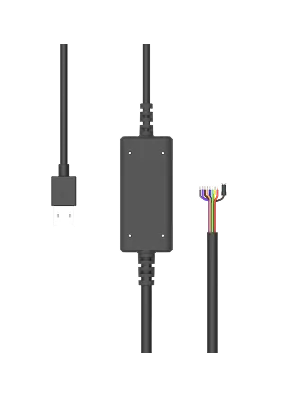

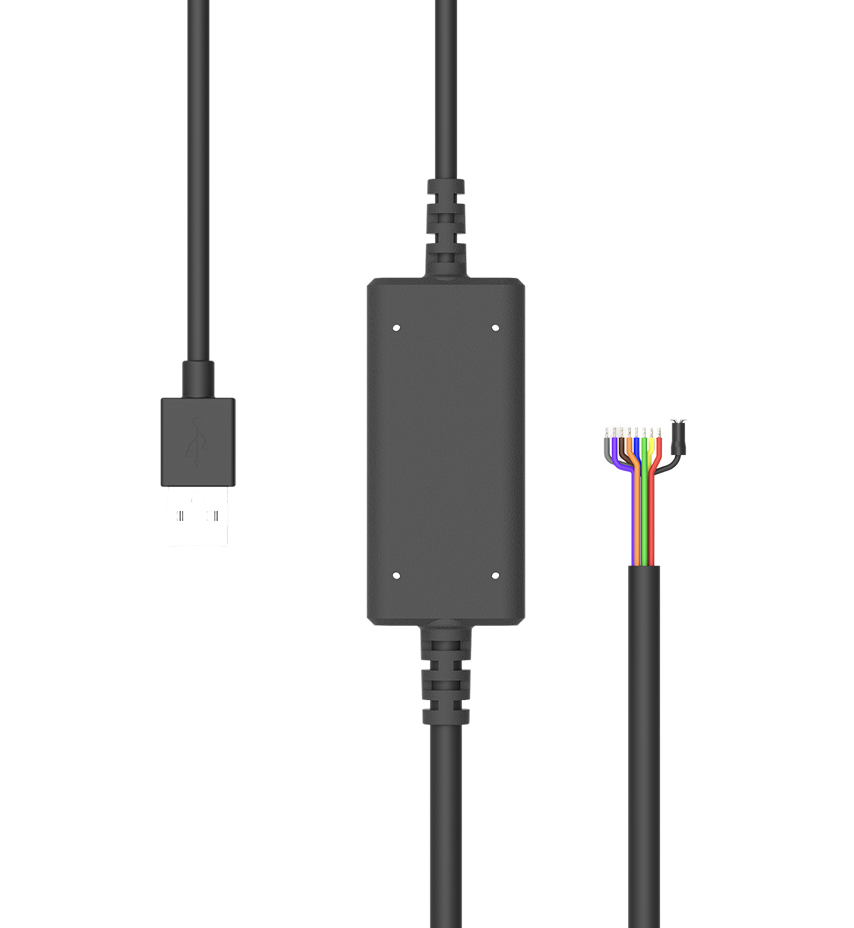

Auxiliary Input Hub
The Auxiliary Input Hub is an accessory that enables customers to add up to 8 additional digital input lines by connecting to the USB port on the Samsara Vehicle Gateway.
8 additional auxiliary ports
The Auxiliary Input Hub provides 8 additional digital input lines to the Samsara Vehicle Gateway. This enables customers to record and visualize additional data from connected equipment, such as emergency lights and sirens, power take-off, crane booms, generators, and more. An additional common ground line is also included.
Customize input lines in the Samsara dashboard
The Samsara vehicle settings page enables you to customize these 8 auxiliary lines (along with the two native auxiliary ports on the Samsara Vehicle Gateway) according to your needs, making it easy to track a variety of equipment across your entire fleet.
Product specifications
Specifications | Material PVC-45P Enchasing Size 12.5mm x 32mm x 70mm Weight 200g USB Cable Length 150mm Aux Line Cable Length 150mm Temperature Range -40 to 85ºC Aux Line Input Voltage Range 0-30V (<12V - Low, >=12V - High) Aux Line Wire Gauge 22 AWG Number Of Digital Inputs 8 Number Of Digital Inputs 0 |
