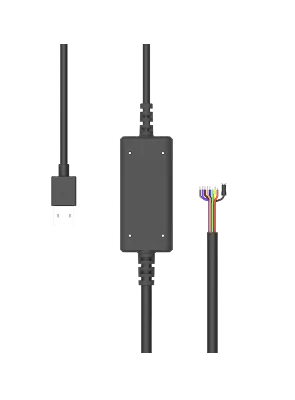

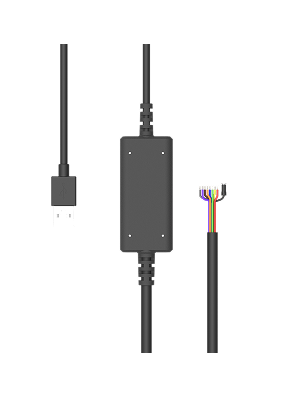

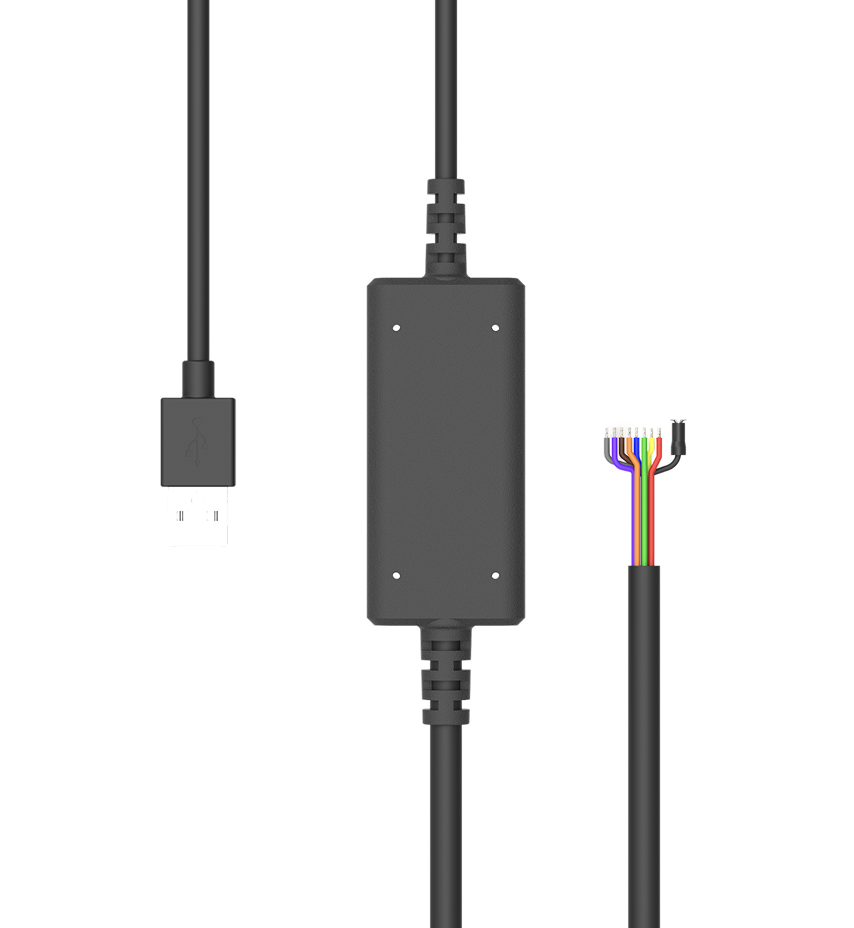

Auxiliary Input Hub
The Auxiliary Input Hub is an accessory that enables customers to add up to eight additional digital input lines by connecting to the USB port on the Samsara Vehicle Gateway.
Eight additional auxiliary ports
The Auxiliary Input Hub provides eight additional digital input lines to the Samsara Vehicle Gateway. This enables customers to record and visualise additional data from connected equipment, such as emergency lights and sirens, power take-off, crane booms, generators and more. An additional common ground line is also included.
Customise input lines in the Samsara dashboard
The Samsara vehicle settings page enables you to customise these eight auxiliary lines (along with the two native auxiliary ports on the Samsara Vehicle Gateway) according to your needs, making it easy to track a variety of equipment across your entire fleet.
Product specifications
Specifications | Material PVC-45P Encasing Size 12.5 mm x 32 mm x 70 mm Weight 200 g USB Cable Length 150 mm Aux Line Cable Length 150 mm Temperature Range -40 to 85ºC Aux Line Input Voltage Range 0–30 V (<12 V – Low, >=12 V – High) Aux Line Wire Gauge 22 AWG Number Of Digital Inputs 8 Number Of Digital Inputs 0 |
