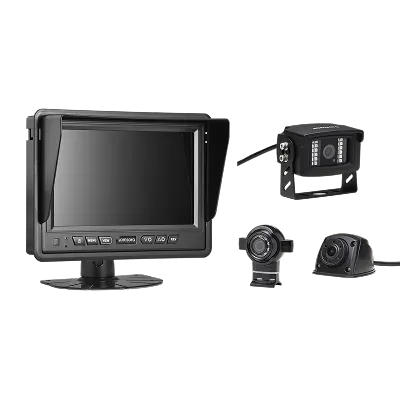

360 Visibility Bundle

Side Camera, Mirror Mounted | HW-MC11

Side Camera, Body Mounted | HW-MC21

Rear Camera | HW-MC31

7” In-Cab Monitor | HW-MN11

Overview

The 360 Visibility Bundle delivers expanded camera coverage and in-cab visibility to improve driver safety on the road. Designed to work seamlessly with Samsara’s AI Multicam or HD Camera Connector, this modular hardware set includes rugged auxiliary cameras and a high-definition in-cab monitor.

Whether you need side, rear or auxiliary views, the bundle offers the flexibility to tailor coverage to your unique vehicle configuration.

Highlights

  • Seamless hardware integration: pairs with other Samsara devices, including:
  • AI Multicam for real-time, AI-powered alerts and live, in-cab visibility
  • HD Camera Connector for high-quality video capture and retrieval1
  • High-definition video clarity: all cameras and the in-cab monitor support 1080p HD resolution for sharp, detailed footage
  • Audio-ready configuration: built-in microphones can be used to capture audio for added context where needed
  • Built for the road: slim, rugged camera designs support exterior or interior mounting and stand up to harsh operating environments
  • Driver-centric monitor experience: in-cab monitor provides configurable viewing arrangements, and, when paired with AI Multicam, supports trigger wire integration for dynamic visibility based on vehicle actions

    • 1 HD Camera Connector does not support live AI detections

    Compatibility

    The Cameras and Monitor in the 360 visibility bundle are compatible with the following:

  • Samsara AI Multicam (HW-MC-AIM4)
  • Samsara HD Camera Connector (HW-CM-AHD1)

    • Add-on accessories

  • 5 m GX12 Female to GX12 Male Cable | CBL-MC-GX5
  • 10m GX12 Female GX12 Male Cable | CBL-MC-GX10
  • 15 m GX12 Female GX12 Male Cable | CBL-MC-GX15

    • Technical Specifications – Side Camera, Mirror Mount HW-MC11

    Enclosure

    Housing Material

    Plastic

    Dimensions

    2.8 in X 2.2 in X 2 in

    72 mm X 57 mm X 51 mm

    IP Rating

    IP69K

    Operating Temperature

    -30°C to 75°C

    Camera Specs

    Resolution

    1080p

    Horizontal Field of View

    112°

    Vertical Field of View

    62°

    Low-Light IR

    Yes

    Audio Specs

    Built-In Microphone

    Yes

    Power

    Power Requirements

    Powered by AIM4 or AHD1

    Technical Specifications – Side Camera, Body Mount HW-MC21

    Enclosure

    Housing Material

    Metal

    Dimensions

    2.8 in x 2 in x 1.7 in

    70 mm x 51 mm x 45 mm

    IP Rating

    IP69K

    Operating Temperature

    -30°C to 75°C

    Camera Specs

    Resolution

    1080p

    Horizontal Field of View

    135°

    Vertical Field of View

    90°

    Low-Light IR

    Yes

    Audio Specs

    Built-In Microphone

    Yes

    Power

    Power Requirements

    Powered by AIM4 or AHD1

    Technical Specifications – Rear Camera, HW-MC31

    Enclosure

    Housing Material

    Metal

    Dimensions

    3.1 in x 2.4 in x 1.9 in

    78 mm x 60.6 mm x 48.5 mm

    IP rating

    IP69K

    Operating Temperature

    -30°C to 75°C

    Camera Specs

    Resolution

    1080p

    Horizontal Field of View

    112°

    Vertical Field of View

    62°

    Low-Light IR

    Yes

    Audio Specs

    Built-In Microphone

    Yes

    Power

    Power Requirements

    Powered by AIM4 or AHD1

    Technical Specifications – Monitor, HW-MN11

    Enclosure

    Housing Material

    Plastic

    Dimensions

    7.36 in X 5.43 in X 1.22 in

    187 mm X 138 mm X 31 mm

    Weight

    530 g

    IP Rating

    IP54

    Operating Temperature

    -30°C to 75°C

    Display Specs

    Auto-Dimming

    Yes

    Resolution

    Supports up to 1080p

    Video Format

    AHD/PAL/NTSC

    Power

    Power Requirements

    12–24 V

    500 mA @ 12 V

    If paired with AIM4, power is directly supplied by the AIM4
