AI Multi-Cam

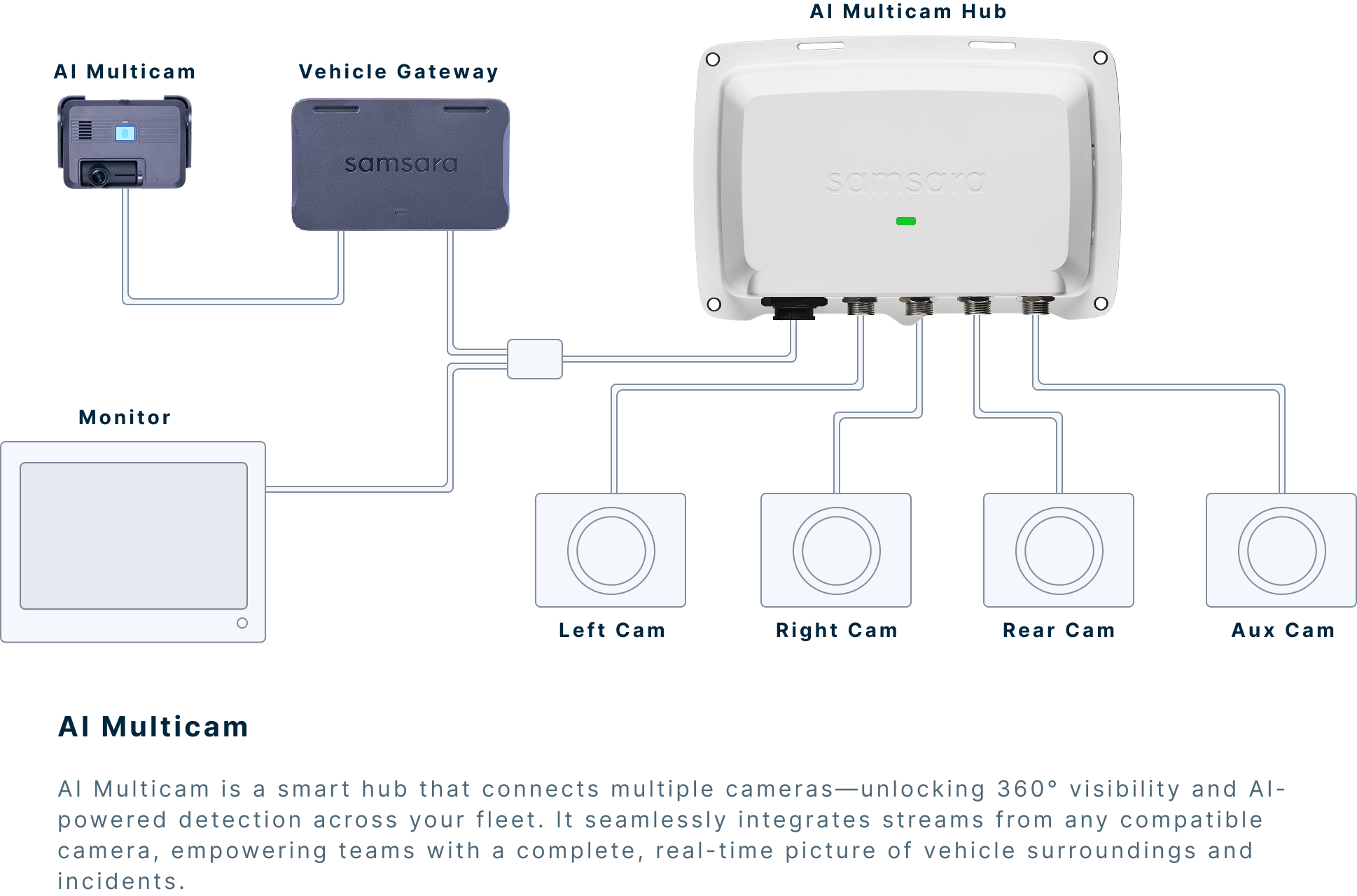

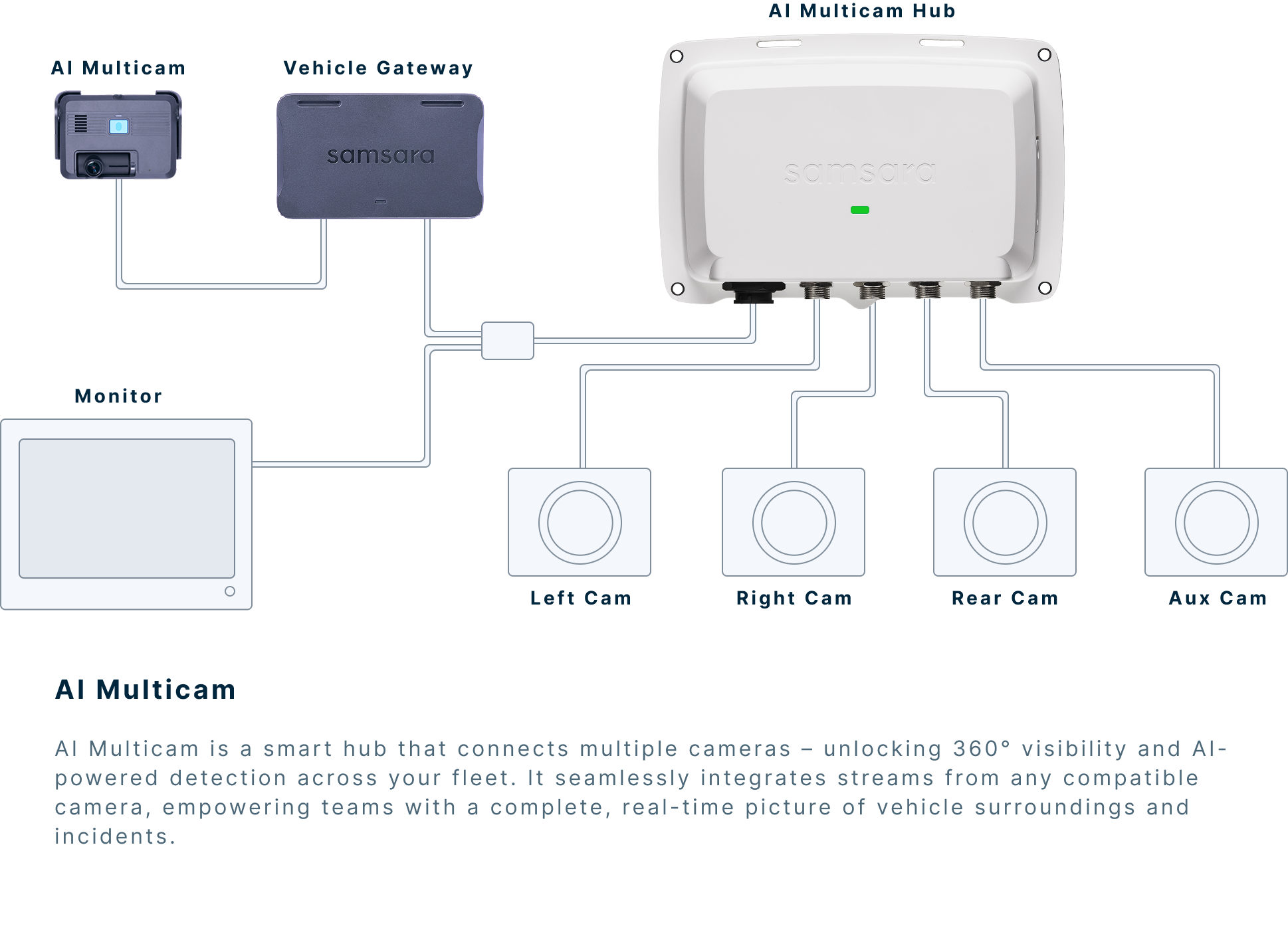

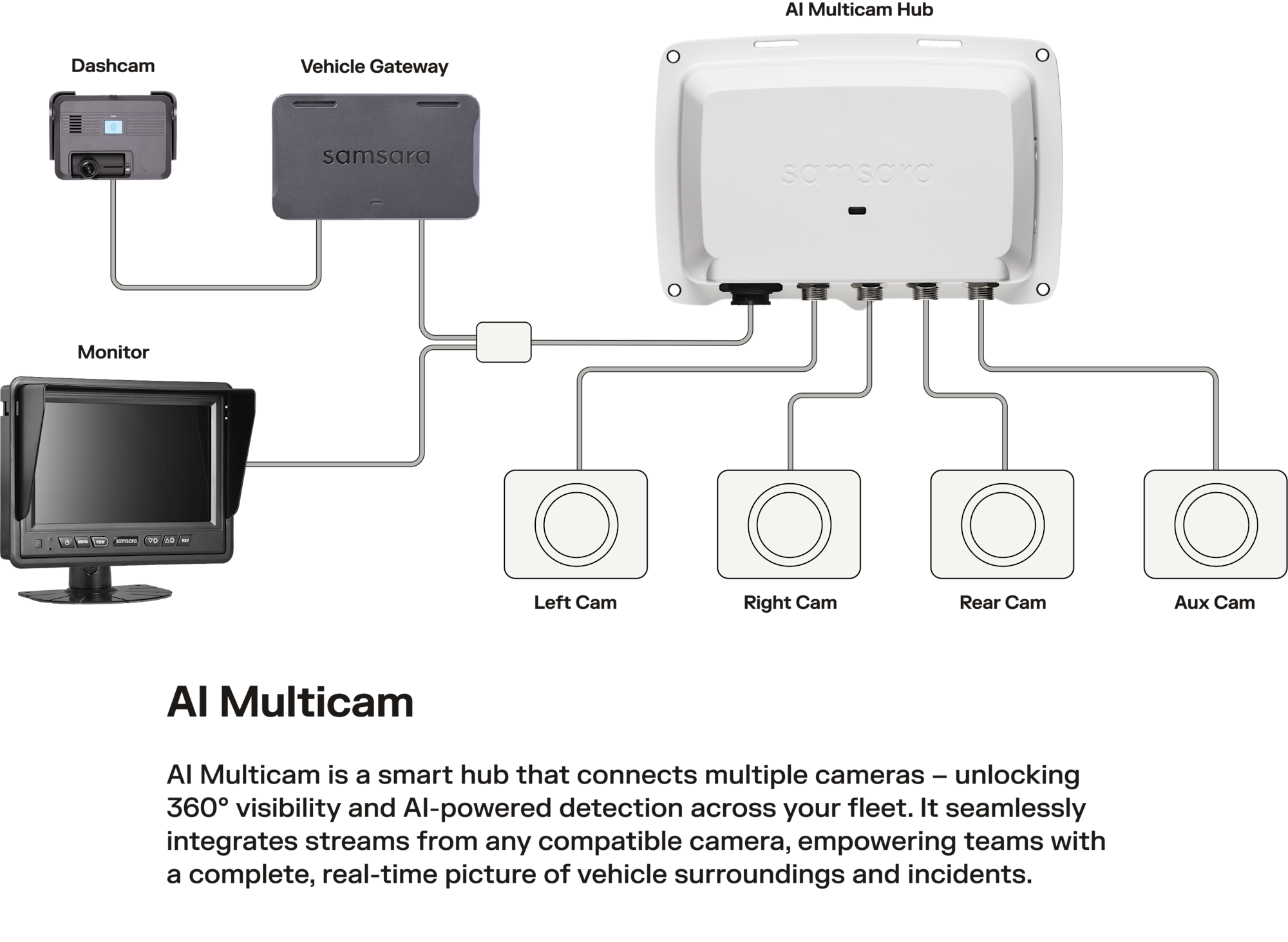

AI Multicam delivers live 360° visibility and insights directly into the Samsara cloud as well as real-time risk detection alerts on an in-cab monitor from up to four auxiliary high-definition (HD) camera feeds.

This device empowers fleets to:

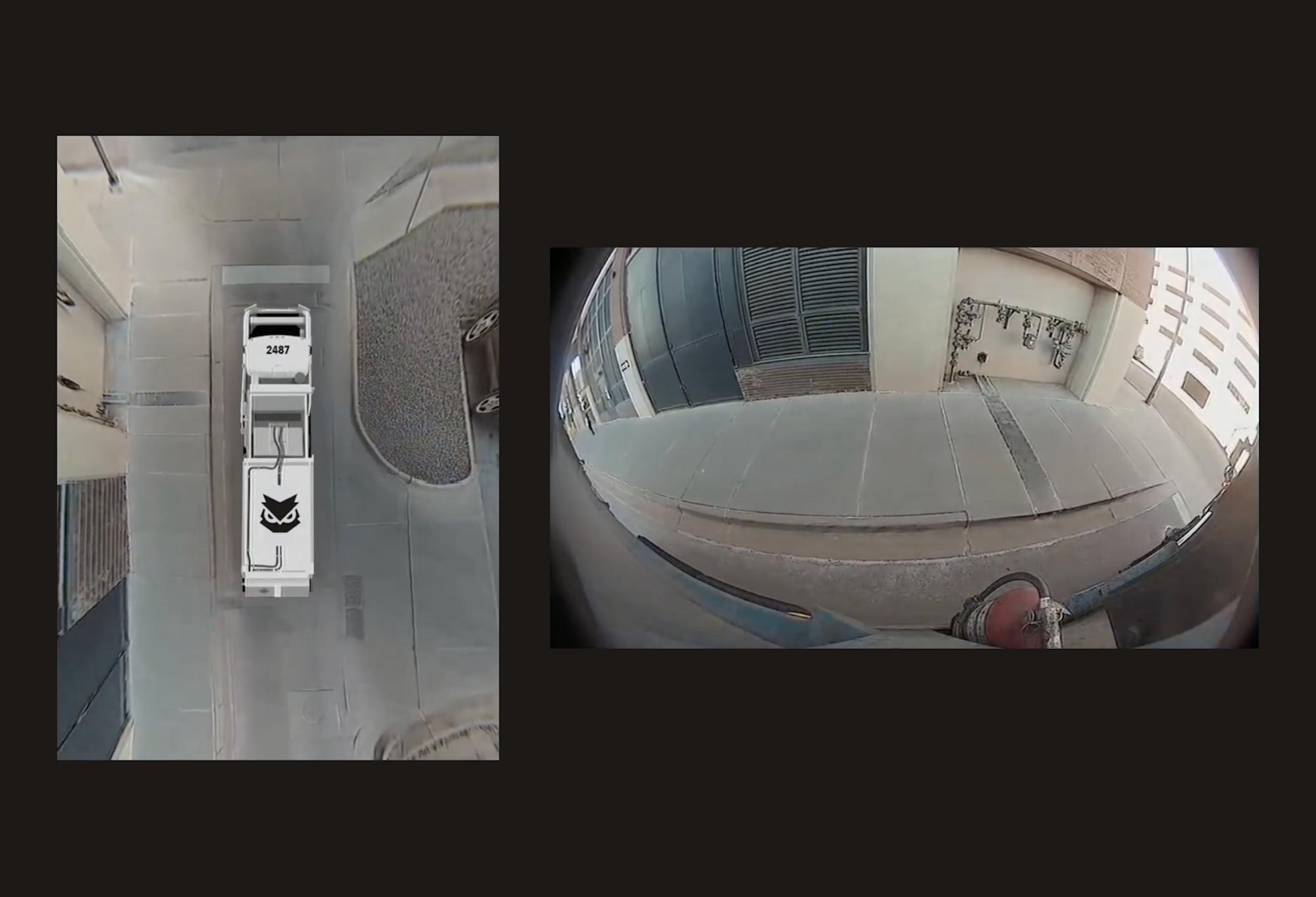

  • Prevent incidents before they happen with live 360 visibility and AI detections across all camera feeds
  • Resolve incidents with total clarity, optional audio and an enhanced footage-retrieval experience

    • Highlights

  • Full-vehicle HD visibility: Mount up to four auxiliary cameras anywhere on the vehicle to capture 1080p video and optional audio on all streams

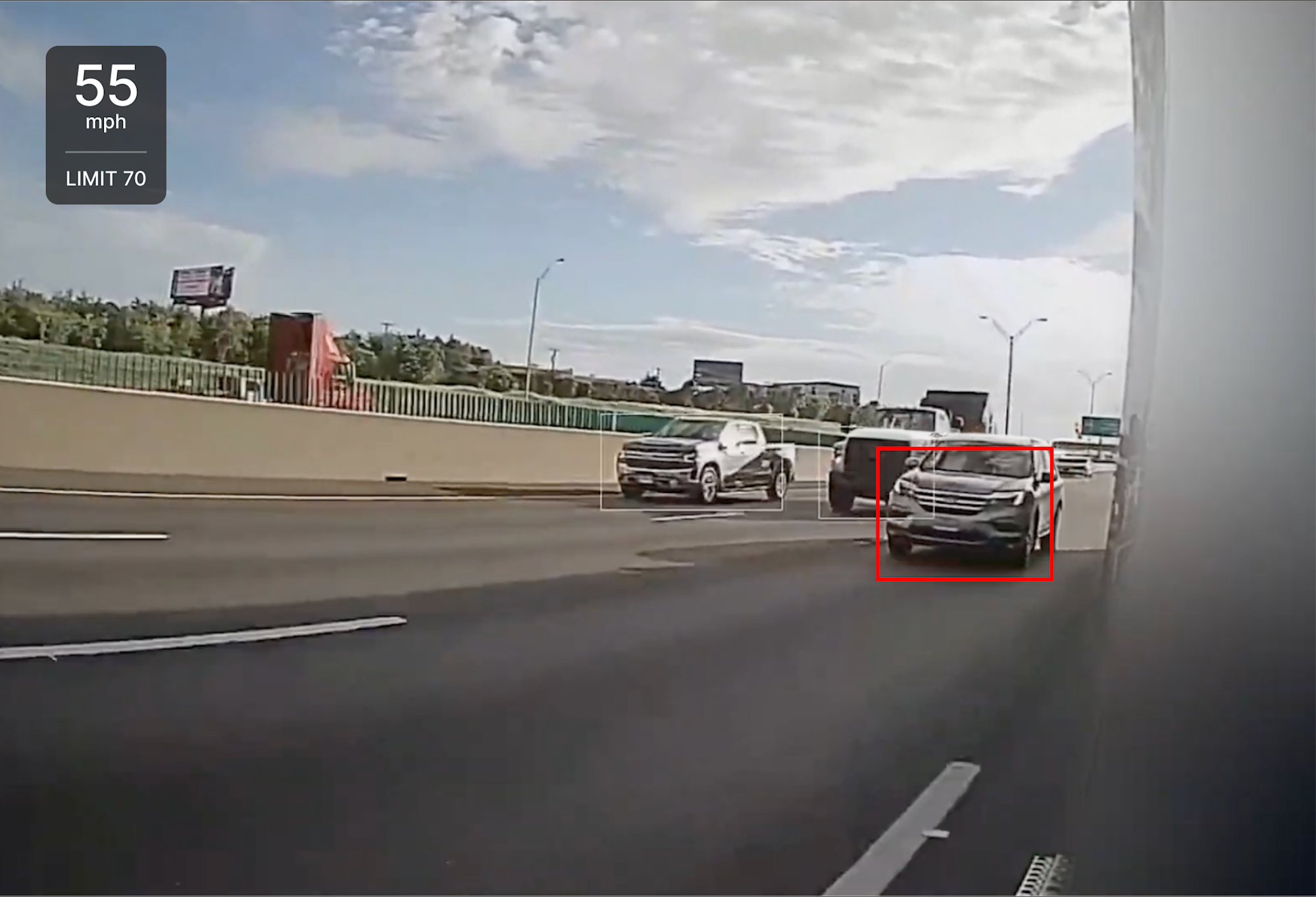

  • Real-time AI detection: Receive in-cab audio alerts and visual cues on an in-cab monitor for pedestrians, cyclists and other risks
  • Comprehensive footage retrieval: Download extended 10-minute video and audio recording and access up to months of footage history
  • Unified platform experience: integrates with Samsara’s cloud dashboard for streamlined incident review, alerting and video retrieval
  • Hardware choice: Use Samsara or compatible third-party cameras to match your fleet’s needs

    • In the box

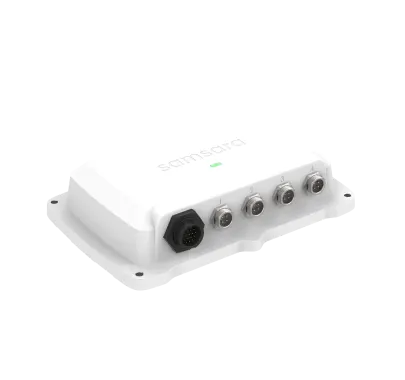

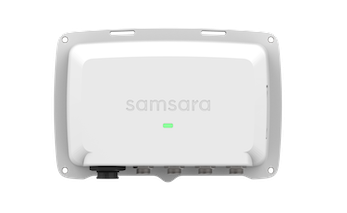

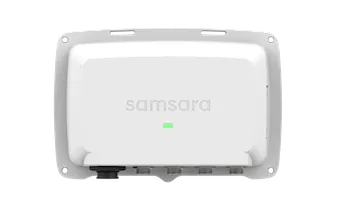

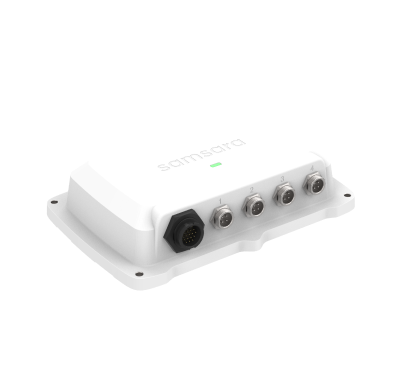

  • AI Multicam Hub
  • AI Multicam Cable Harness

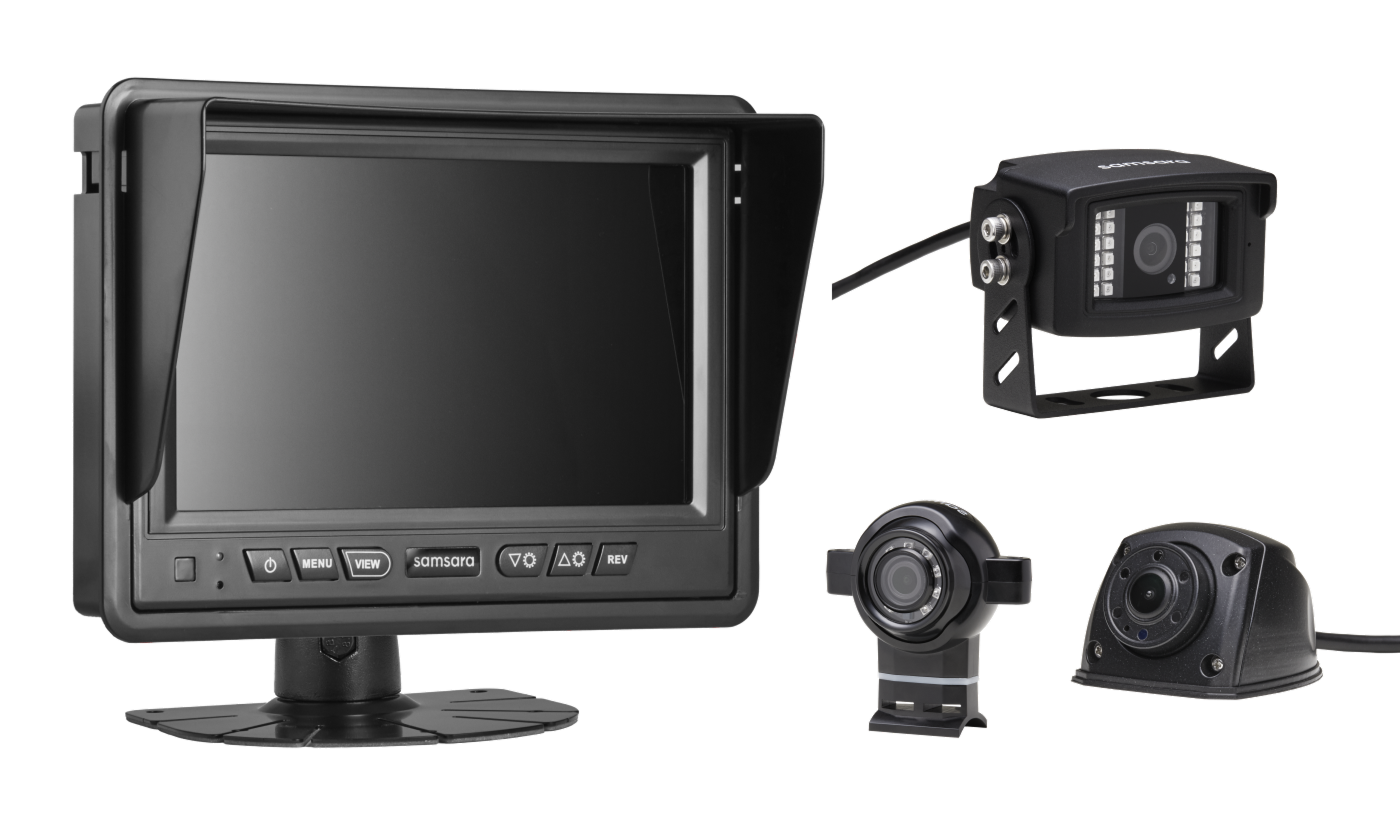

    • Add-on accessories

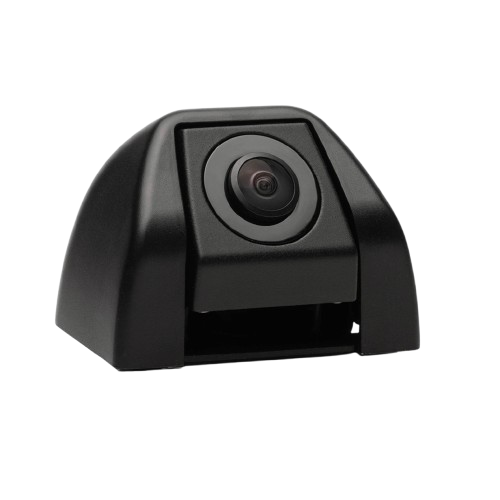

  • Side Camera, Mirror Mounted or Body Mounted
  • Low-profile, ruggedised design suitable for vehicle exterior (i.e. blind spot coverage, extra road visibility) or interior (i.e. cargo monitoring, passenger safety)
  • Rear Camera
  • Highly ruggedised design suitable for external rear-facing coverage or specialised locations (e.g. waste management hopper, mechanical arms, etc.)
  • 7” In-Cab Analogue HD Monitor

    • Note: AI Multicam works seamlessly with Samsara auxiliary and compatible third-party hardware

    Storage And Compute

    Storage
    33 hours of high resolution and 120 hours of secondary extended video
    An additional 180 hrs of high-resolution and 500 hrs of standard-resolution video with an optional 1 TB microSD card
    The device can support a wide range of micro SD card options from 256 GB to 1 TB
    Edge Processing
    Real-time AI detections with high-capacity ML processor
    Automatic Upload
    Critical safety events containing all camera streams uploaded automatically to Samsara Safety Inbox
    On-Demand Upload
    Stored recordings from every recording camera stream available via cloud dashboard
    Up to 1-minute high-resolution video with audio
    Up to 10-minute secondary extended video with audio
    Up to 40 minutes of drive time as hyperlapse video

    Video Input/Output

    Video Signal
    AHD/NTSC/PAL
    Number of cameras
    Up to four 1080p/720p/CVBS AHD cameras
    Video Connectors
    4x 4 pin GX12 male input, 1x 4 pin GX12 female output

    Audio

    Audio Input
    Optional audio capture on all four cameras if they are audio-enabled
    In-Cab Alerts
    Optional in-cab coaching and feedback for a critical safety event will be delivered via the AI dashcam
    This device does not have a speaker

    Mounting, Enclosure, and Power

    Dimensions
    AI Multicam Device: 187 mm x 127 mm x 43 mm (7.36” x 5” x 1.69”)
    AI Multicam Cable Harness:
    • USB and power: 4 m (13 ft)
    • Trigger and display output: 2 m (6.56 ft) t
    Mounting
    4x M4 self-drilling screws included
    2x 550 mm cable ties included
    Recommended mounting location same as or similar to location of the vehicle gateway
    Power
    9–36 V DC
    Power draw: 90 mW (sleep) to 48 W (peak); normal operation at 25 W
    Operating Temp
    -40ºC to 70ºC
    Storage Temp
    -40ºC to 85ºC
    Humidity
    5%–85% (non-condensing)
    Salt Fog
    MIL-STD-810H 509.7
    Ingress Rating
    IP67 and IP69K
    Shock
    ISO 16750-3. 6-axis, 50G
    Vibration
    ISO 16750-3 Method 4
    Enclosure Material
    UV-stabilised polycarbonate
