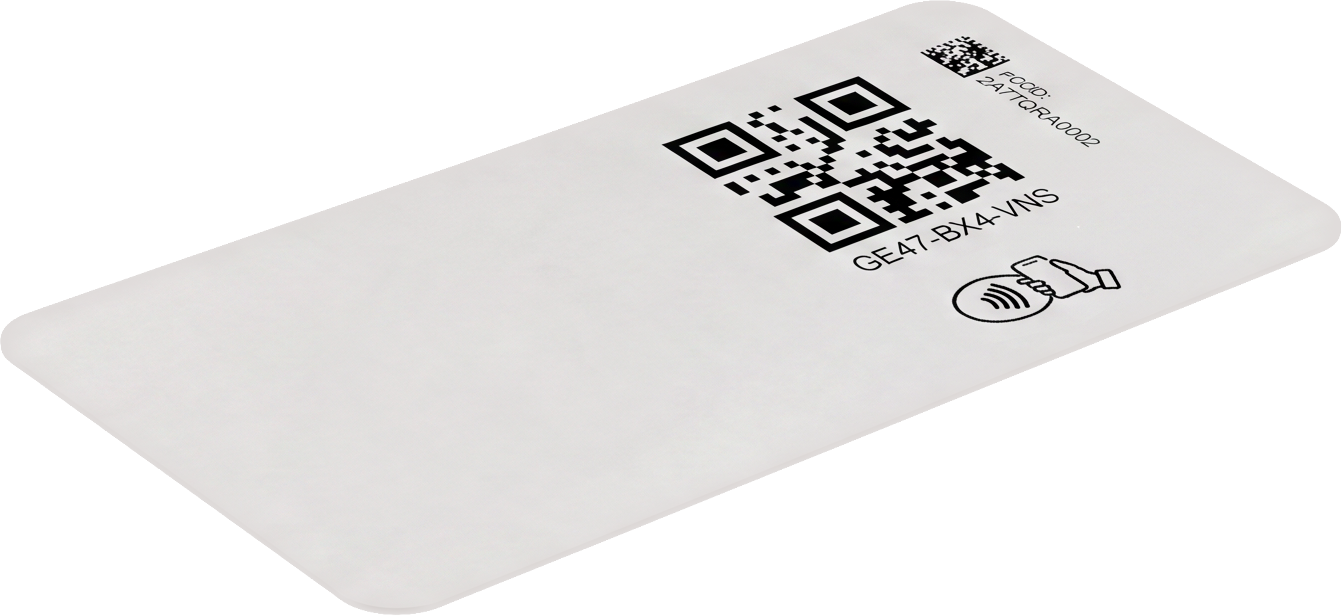

Tracking Label

Connectivity

Data communications

2.4GHz ISM Band

Output power

2dBm

Operating area

United States, Canada, UK, Mexico, Europe

Secure communications

All communications are anonymized and authenticated using AES encryption

Location

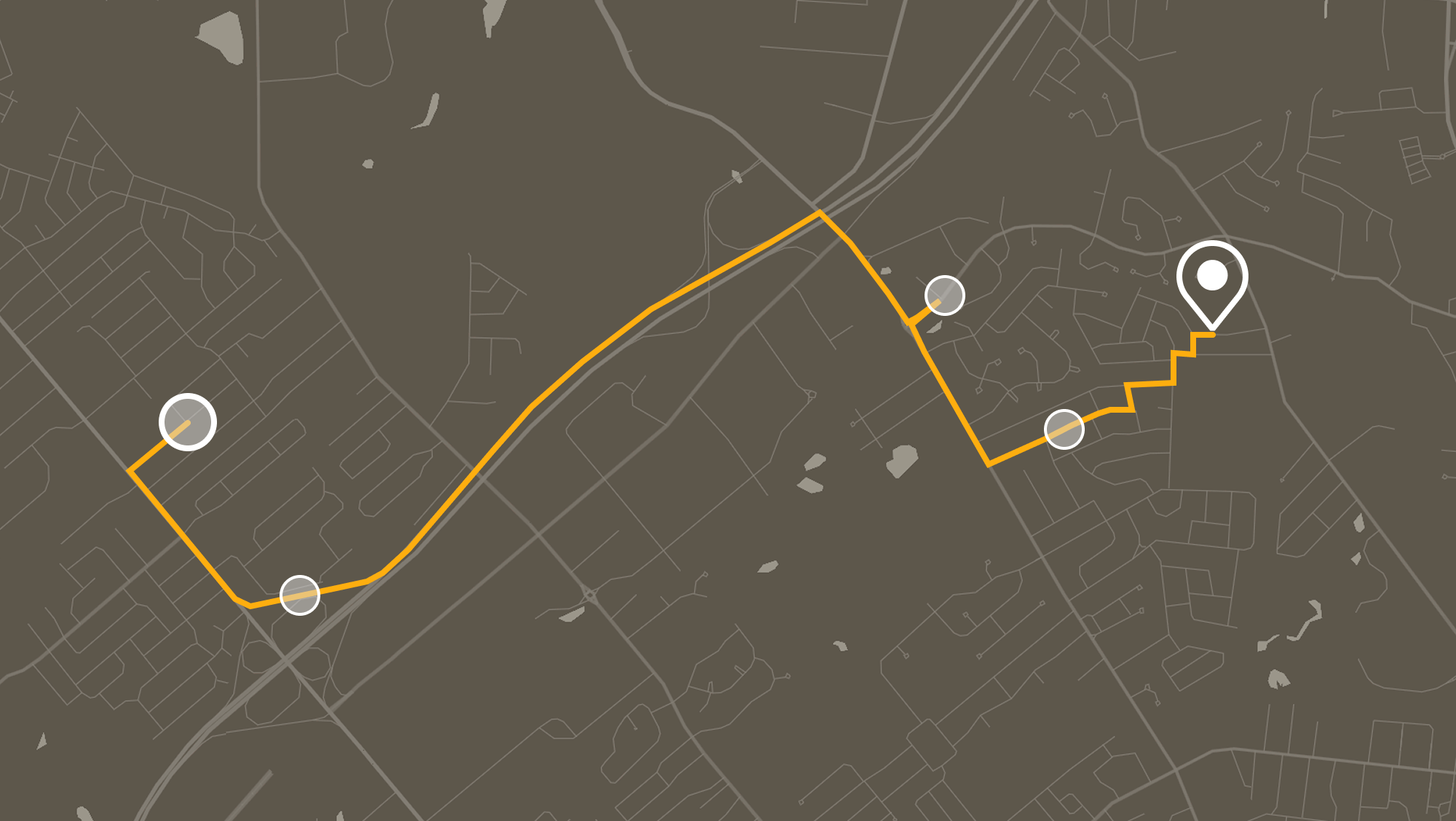

Approximate geolocation is based on the GPS location of nearby gateways in the Samsara network that detect the Asset Tag 2.4 GHz advertisements.

Data transmission and storage

Built-in flash memory logs data when Internet connectivity is unavailable

Power

Materials

Paper, PET, and adhesive backed label.

Dimensions

102 x 49 x .56 mm

Weight

<1 g

Operating temperature

-10°C to 55°C

IP rating

IP 61 (protected against dust and light rain)

Samsara cloud software features

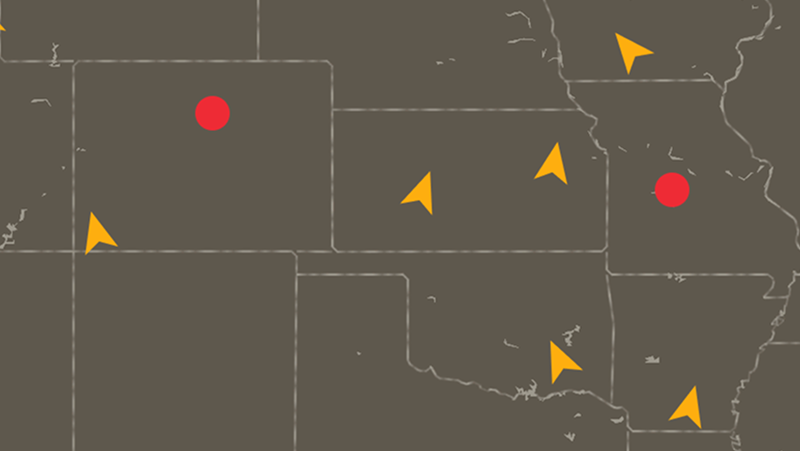

Near real-time visibility powered by the Samsara Network

Developer APIs

Shipment Center

AI Assistant and Integrations

Agent Studio and Automations

Install accessories

What’s included

100x or 1000x shipment labels depending on SKU ordered.

Regulatory information

IC STATEMENT

This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with Innovation, Science and Economic Development Canada RF exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated to ensure a minimum of 20 cm spacing to any person at all times. CAN ICES-3(A)/NMB-3(A)

IC Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

FEDERAL COMMUNICATION COMMISSION INTERFERENCE STATEMENT

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
