AI Multicam

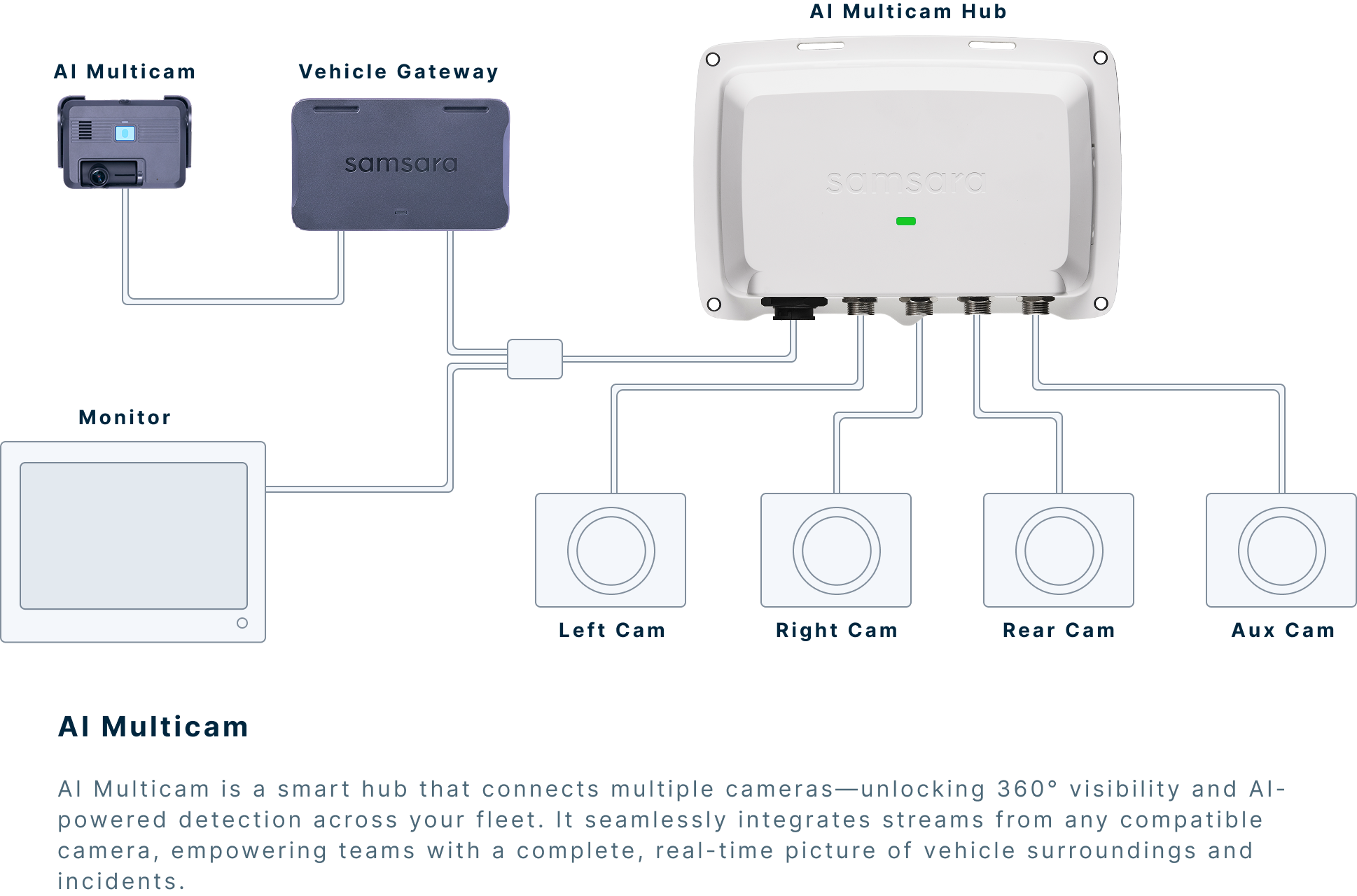

AI Multicam delivers live 360° visibility and insights directly into the Samsara cloud as well as real-time risk detection alerts on an in-cab monitor from up to four auxiliary high definition (HD) camera feeds.

This device empowers fleets to:

  • Helps prevent incidents before they happen with live 360 visibility and AI detections across all camera feeds
  • Resolve incidents with total clarity, optional audio, and an enhanced footage retrieval experience

    • Highlights

  • Full-vehicle HD visibility: Mount up to four auxiliary cameras anywhere on the vehicle to capture 1080p video and optional audio on all streams
  • Real-time AI detection: Receive in-cab audio alerts and visual cues on an in-cab monitor for pedestrians, cyclists, and other risks
  • Comprehensive footage retrieval: Download extended 10-minute video and audio recording and access up to months of footage history
  • Unified platform experience: integrates with Samsara’s cloud dashboard for streamlined incident review, alerting, and video retrieval
  • Hardware choice: Use Samsara or compatible third-party cameras to match your fleet’s needs

    • In the box

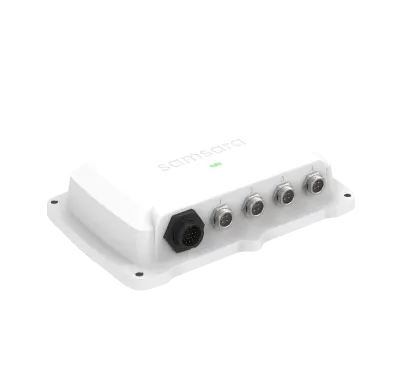

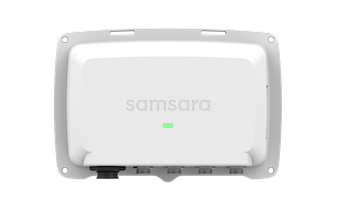

  • AI Multicam Hub
  • AI Multicam Cable Harness

    • Add-on accessories

  • Side Camera, Mirror Mounted or Body Mounted
  • Low-profile, ruggedized design suitable for vehicle exterior (i.e., blind spot coverage, extra road visibility) or interior (i.e., cargo monitoring, passenger safety)
  • Rear Camera
  • Highly ruggedized design suitable for external rear-facing coverage or specialized locations (e.g., waste management hopper, mechanical arms, etc.)
  • 7” In-cab Analog HD Monitor

    • Note: AI Multicam works seamlessly with Samsara auxiliary and compatible third-party hardware

    Storage And Compute

    Storage
    33 hours of high resolution and 120 hours of secondary extended video
    An additional 180 hrs of high resolution and 500 hrs of standard resolution video with an optional 1TB microSD card
    The device can support a wide range of micro SD card options from 256GB to 1TB
    Edge Processing
    Real-time AI detections with high-capacity ML processor
    Automatic Upload
    Critical safety events containing all camera streams uploaded automatically to Samsara Safety Inbox
    On-Demand Upload
    Stored recordings from every recording camera stream available via cloud dashboard
    Up to 1-minute high-resolution video with audio
    Up to 10-minute secondary extended video with audio
    Up to 40 minutes of drive time as hyperlapse video

    Video Input / Output

    Video Signal
    AHD/NTSC/PAL
    Number of cameras
    Up to four 1080p/720p/CVBS AHD cameras
    Video Connectors
    4x 4 pin GX12 male input,1x 4 pin GX12 female output

    Audio

    Audio Input
    Optional audio capture on all four cameras if they are audio-enabled
    In Cab Alerts
    Optional in-cab coaching and feedback for critical safety event will be delivered via the AI dashcam
    This device does not have a speaker

    Mounting, Enclosure, and Power

    Dimensions
    AI Multicam Device: 187mm x 127mm x 43mm (7.36” x 5” x 1.69”)
    AI Multicam Cable Harness:
    • USB and power: 4m (13ft)
    • Trigger and display output: 2m (6.56 ft) t
    Mounting
    4x M4 self-drilling screws included
    2x 550mm cable ties included
    Recommended mounting location same as or similar to location of the vehicle gateway
    Power
    9-36V DC
    Power draw: 90mW (sleep) to 48W (peak); normal operation at 25W
    Operating Temp
    -40ºC to 70ºC
    Storage Temp
    -40ºC to 85ºC
    Humidity
    5% - 85% (non-condensing)
    Salt Fog
    MIL-STD-810H 509.7
    Ingress Rating
    IP67 and IP69K
    Shock
    ISO 16750-3. 6-axis, 50G
    Vibration
    ISO 16750-3 Method 4
    Enclosure Material
    UV-stabilized polycarbonate
